Chenghao 2.8" TFT lCD Display Module, 65K Color, 500 cd/m² Brightness, USB Touch Interface

Product Description:

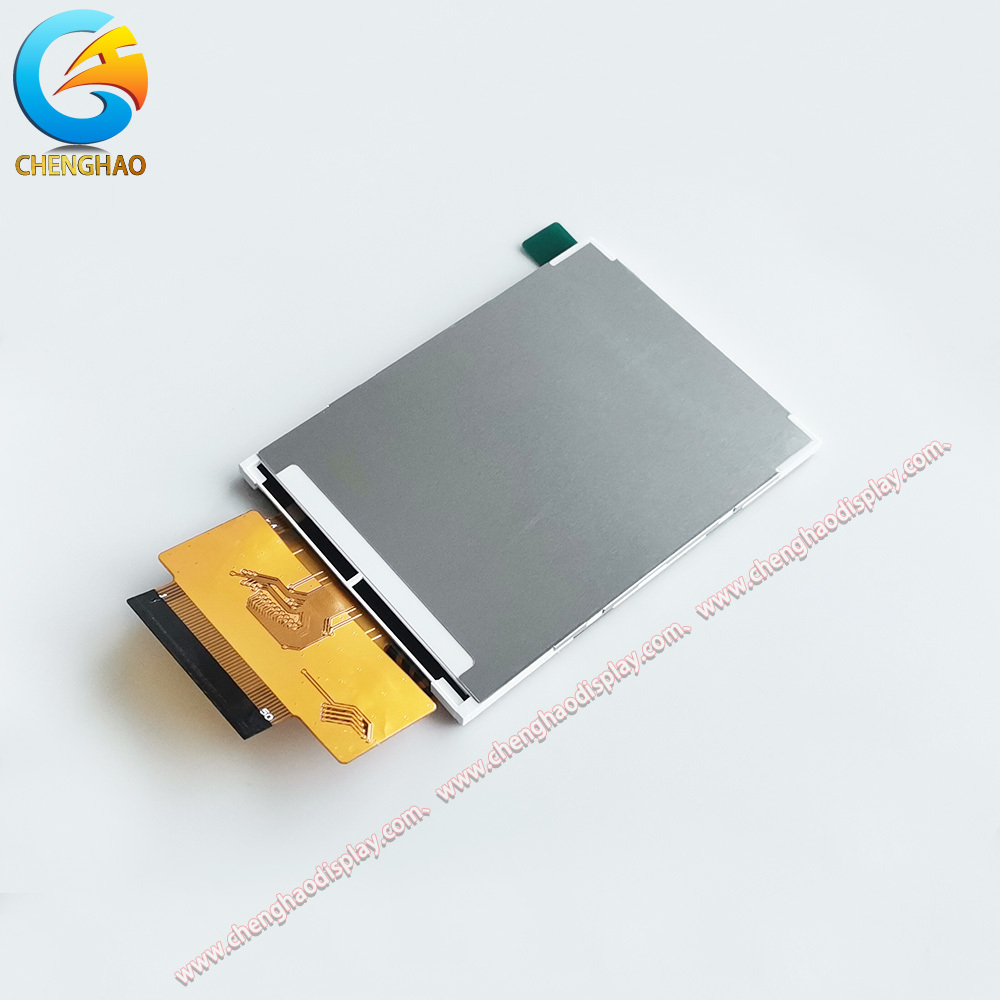

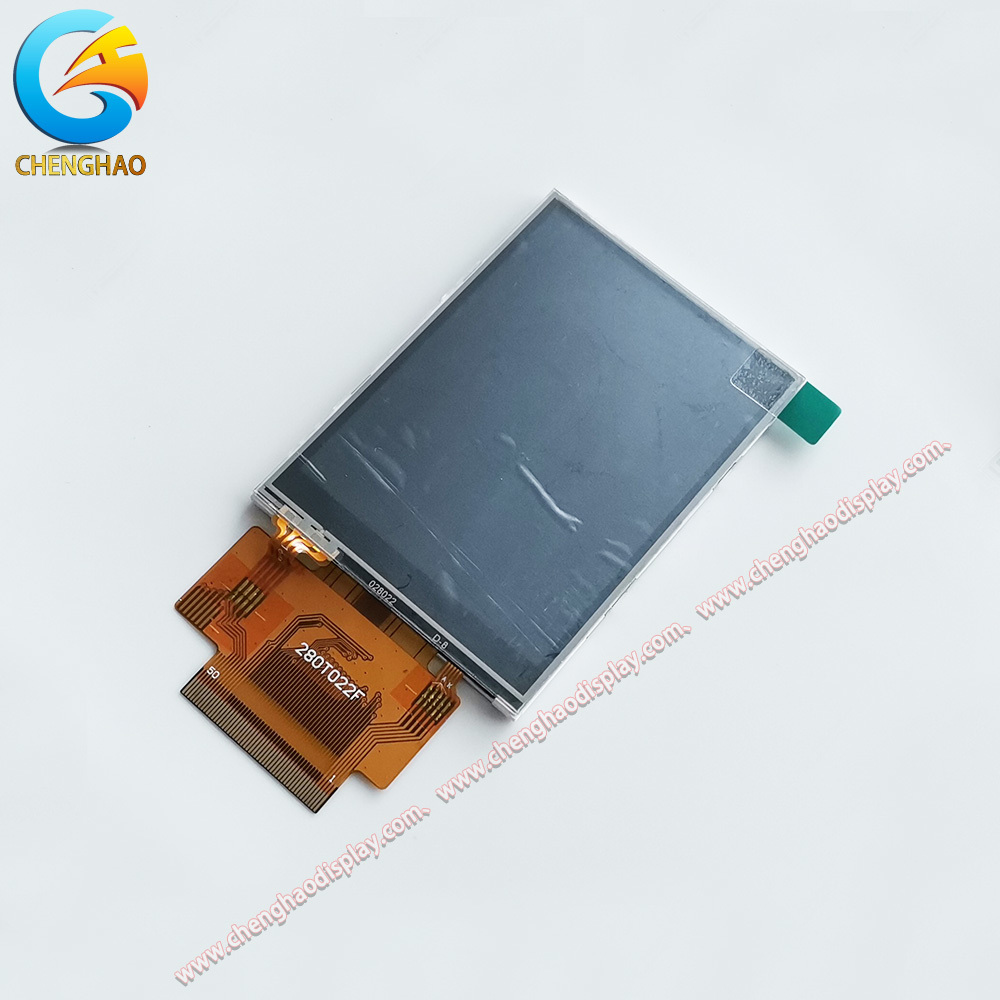

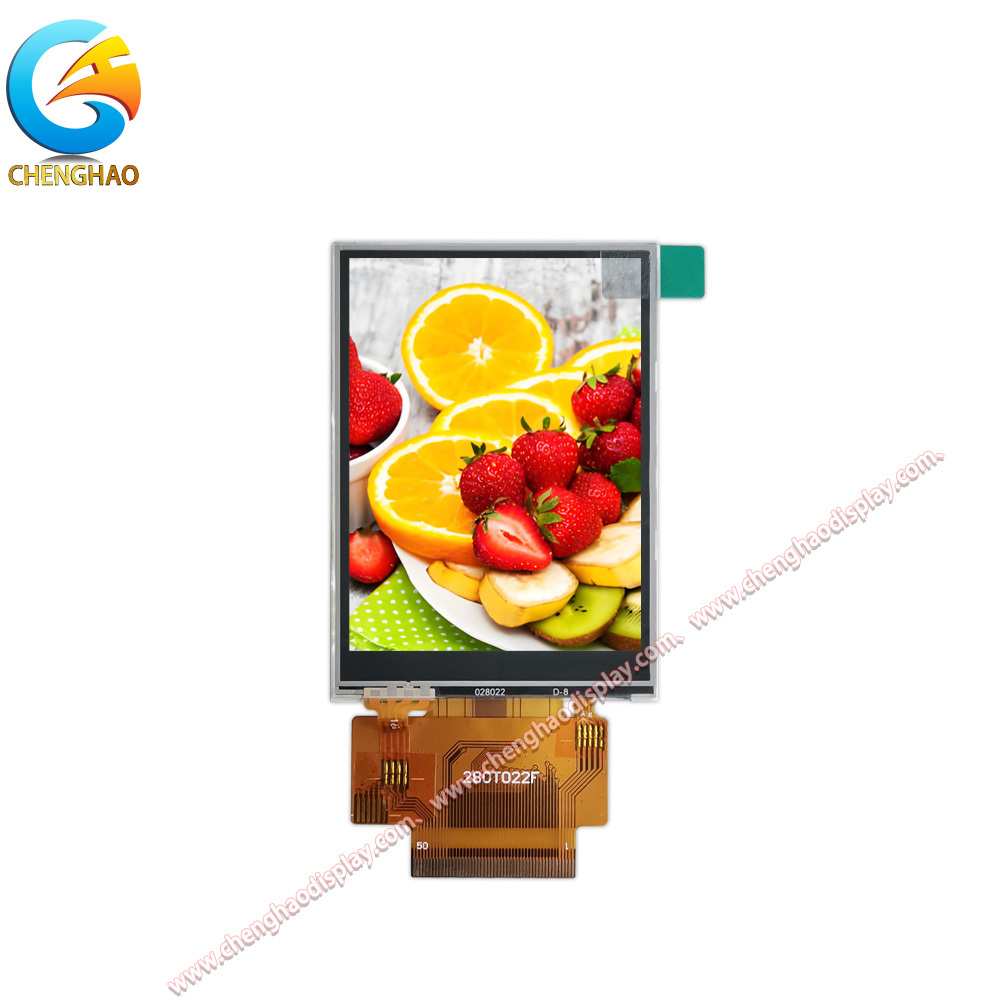

The CH280QV22F-T is a premium 2.8-inch vertical format TFT LCD display module engineered by Chenghao Optoelectronic. It features a sharp QVGA resolution of 240 x 320 pixels, delivering clear and detailed visuals. The module incorporates an IPS (In-Plane Switching) panel, ensuring outstanding color consistency and a wide viewing angle of 80/80/80/80 (Up/Down/Left/Right) with minimal color shift, making it suitable for applications viewed from various positions.

This module comes integrated with a resistive touch screen (RTP), accessed via a USB interface, providing reliable pointer input. It offers remarkable interface flexibility, being compatible with SPI, MCU, and RGB interfaces via its 50-pin FPC connector, allowing for easy integration into diverse system architectures. Built for durability, it operates reliably across an extended temperature range of -20°C to +70°C. With a compact footprint of 50.0mm x 69.2mm x 3.4mm and a bright 500 cd/m² backlight (customizable), the CH280QV22F-T is an ideal solution for industrial HMIs, portable devices, instrumentation, and various embedded systems requiring a robust and high-performance display.

Features:

• High-Performance IPS Display: The IPS technology guarantees superior color reproduction and a consistent 80-degree viewing angle from all sides, eliminating the color inversion common in standard TN panels and ensuring optimal readability in multi-user or off-axis viewing scenarios.

• Robust Environmental Tolerance: Designed for challenging conditions, this module maintains stable operation within a wide temperature range of -20°C to +70°C, making it suitable for both indoor and outdoor industrial applications where temperature fluctuations are common.

• Versatile System Integration: With inherent compatibility for SPI, MCU, and RGB interfaces on a single 50-pin FPC, it offers unmatched flexibility for designers.

• Balanced Optical Performance: It strikes an excellent balance between a high brightness of 500 cd/m² (with a customizable range up to 1000 cd/m²), a contrast ratio of 800:1, and support for 65K colors.

• Modular Design with Touch Option: The module is offered as a complete TFT + Resistive Touch solution, simplifying the supply chain and assembly process. Critically, the touch panel is configurable, allowing customers to opt for capacitive touch or no touch based on specific project requirements and cost targets.

Technical Parameters:

Customization:

At Chenghao Optoelectronic, we understand that standard products may not fit every unique application. The CH280QV22F-T serves as an excellent base platform for extensive customization to meet your exact specifications. Our collaborative customization process begins with a detailed consultation to understand your needs.

We offer comprehensive modification services: The FPC (Flexible Printed Circuit) can be fully tailored in shape, length, stacking, and pin count to fit your device's mechanical layout. For the display interface, beyond the standard options, we can integrate others like MIPI, LVDS, or EDP to match your mainboard's output. Backlight brightness is highly adaptable, ranging from 300 to 1000 cd/m² standard, with the capability to achieve up to 2800 cd/m² for sunlight-readable applications. Operating temperature ranges can be adjusted, with standard offerings between -10~+60°C or extended ranges from -45~+90°C for extreme environments.

Furthermore, we provide cover glass customization (shape, thickness, openings, silk-screen printing), alternative touch solutions (switching from resistive to capacitive), and additional treatments like anti-glare coatings and EMI shielding. Our goal is to transform the CH280QV22F-T into your perfect display solution.

FAQ:

Q1: What brand and model is this TFT LCD Capacitive Touchscreen?

A1: This product is from Chenghao Optoelectronic, and the model number is CH280QV22F-T.

Q2: Does this touchscreen have any certifications?

A2: Yes, the CH280QV22F-T touchscreen is certified with CE, RoHS, and FCC.

Q3: Is there a minimum order quantity for this product?

A3: No, there is no minimum order quantity (No MOQ) for the CH280QV22F-T touchscreen.

Q4: How is the product packaged to ensure safety during shipping?

A4: All products are packed carefully to keep them safe. Small sizes are packed using tray plus carton, while bigger sizes use foam slot plus carton. Packaging can also be customized according to customers' requirements.

Q5: What is the typical delivery time and payment terms for this product?

A5: The delivery time is typically between 3 to 7 days. Payment can be made via TT or other agreed methods.

Q6: What is the supply capacity for the CH280QV22F-T touchscreen?

A6: The monthly supply ability is up to 20,000,000 pieces.
